MCP (Model Context Protocol)

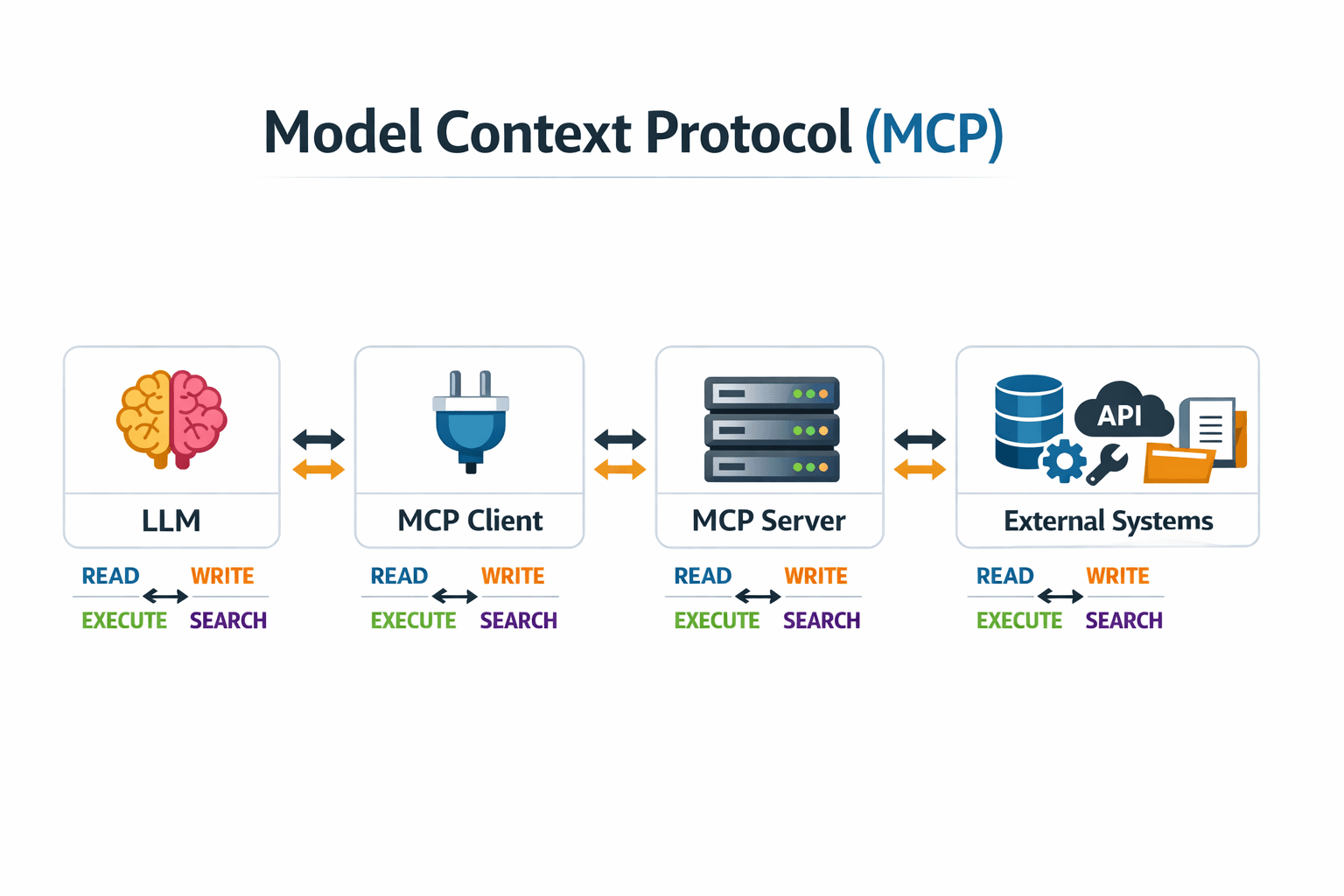

MCP Architecture Diagram

MCP is a standard way to connect agents to external systems: databases, APIs, docs, tools. That makes it the most important trust boundary in your agent setup. Every MCP server can read, and often write, data on the agent's behalf.

Why needed

On their own, models only know their training data and their context window:

Stale knowledge: training has a cutoff
No private data: they can't see your systems
No actions: they can't create tickets or query databases
Limited context: they can't hold everything at once

MCP solves this

Read from files, databases, APIs, docs
Write to external systems
Execute tests and deployments
Search large datasets without loading them

Architecture

LLM ←→ MCP Client ←→ MCP Server ←→ External System

Installation

# Just you, this project (default)
claude mcp add <name> <command>

# Shared with the team: writes .mcp.json, which you check in
claude mcp add --scope project <name> <command>

# Just you, every project
claude mcp add --scope user <name> <command>

# Remote servers over HTTP
claude mcp add --transport http <name> <url>

Share team servers through .mcp.json so every engineer's agent sees the same tools with the same configuration.

Essential MCPs

GitHub: PRs, issues, Actions
Issue tracker (Jira, Linear): tickets and planning
Docs (Confluence, Notion): internal knowledge

Recommended MCPs

# Context7: current docs for libraries, so agents stop using outdated APIs
claude mcp add --transport http context7 https://mcp.context7.com/mcp --header "CONTEXT7_API_KEY: YOUR_KEY"

# Figma Dev Mode: design to code
claude mcp add --transport http figma-desktop http://127.0.0.1:3845/mcp

# Shopify dev docs
claude mcp add shopify-dev-mcp npx @shopify/dev-mcp@latest

Also: Sosumi for Apple platform docs, https://sosumi.ai/

Before adding a server, ask:

What can it read? What can it write?
Whose credentials does it use, and are they scoped?
Could a CLI plus a short skill do the same job? A CLI is often simpler, cheaper in context, and easier to audit

MCP troubleshooting

Problem	Fix
Server missing	`claude mcp list` to check it's configured in this scope
Connection fails	Run the server command by hand and read its error
Permission denied	Check the API key or token the server uses
Too many tools	Remove servers you don't use. Each one costs context

claude mcp list              # configured servers
claude mcp get <name>        # one server's config
claude mcp remove <name>     # remove it

Inside a session, /mcp shows connection status and handles authentication for remote servers.

Writing custom MCPs

When an internal system has no server, write a small one with the official SDK:

// mcp-server/index.ts
import { McpServer } from "@modelcontextprotocol/sdk/server/mcp.js";
import { StdioServerTransport } from "@modelcontextprotocol/sdk/server/stdio.js";
import { z } from "zod";

const server = new McpServer({ name: "orders", version: "1.0.0" });

// Read-only by design: one narrow tool, not a generic HTTP proxy
server.registerTool(
  "get_order",
  {
    description: "Fetch an order by ID from the internal orders API",
    inputSchema: { orderId: z.string() },
  },
  async ({ orderId }) => {
    const res = await fetch(`https://orders.internal/api/orders/${orderId}`);
    return { content: [{ type: "text", text: await res.text() }] };
  },
);

await server.connect(new StdioServerTransport());

claude mcp add --scope project orders node ./mcp-server/index.js

Design narrow tools. A query_internal_api(endpoint, method) tool is a generic proxy into your network. A get_order(orderId) tool does one thing you can reason about.
